Tag Archives: CSSWE

CSSWE Telemetry 13-10-2012

Posted on by

CSSWE Telemetry 13-10-2013 18:33 UTC
Max elevation 70 degree, azimuth between 225 – 043 degrees

Raw Kiss frame:

[271 Bytes KISS Frame (without CRC)]
ctrl: 3   PID: F0 {UI}   252 Payload Bytes
from CQ to CSSWE7:
   1 > 42 00 75 F8 D0 E7 2B 71 01 00 E3 47 0E 3E 00 8D 70 5C C3 B8
  21 > 19 00 0F 05 F4 7A 00 CE 26 00 10 FF 04 A9 07 00 68 00 1D 00
  41 > 00 00 8C 0D 00 82 0C 51 47 00 00 00 00 00 00 C3 06 00 00 00
  61 > 00 00 00 00 00 00 10 00 6A 0E DA D5 2B 71 00 CA 25 00 00 FF
  81 > 04 A9 06 00 0F 00 00 00 00 00 01 00 00 00 10 2A 2C 00 00 00
 101 > 00 00 00 C3 06 00 00 00 00 00 00 00 00 00 0F 00 66 0C 00 CF
 121 > 26 08 1A FF 04 A9 07 00 7E 0C 7D 15 A6 0D 96 0E 00 51 80 81
 141 > 7D 00 00 00 00 00 00 C3 06 00 00 00 00 00 00 00 00 00 10 00
 161 > 70 0E 0A CD 25 00 10 FF 04 A9 06 0A 55 02 40 05 79 04 4D 02
 181 > 0A 28 3C 53 4E 0A 00 00 00 00 00 C3 00 00 00 00 00 00 00 00
 201 > 00 0A 0F 00 6A 0D 00 10 B9 AB 00 3E 00 00 A3 00 00 93 00 15
 221 > 00 00 00 00 00 00 00 00 1C 2C 0A 00 00 50 60 00 44 00 F7 FD
 241 > 1B 0A 07 00 32 AF 20 07 A6 56 3A 3C

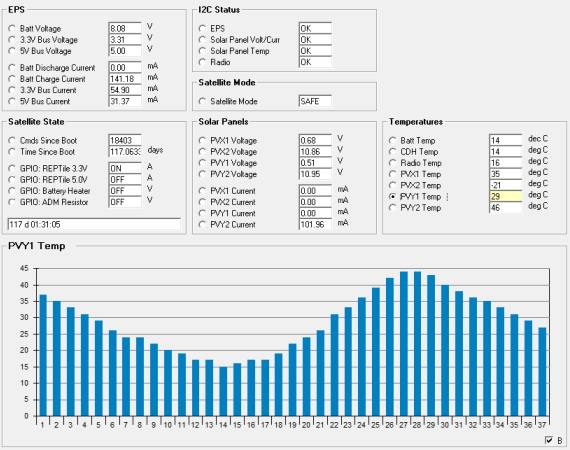

Telemetry overview:

CSSWE TLM 12-10-2013 18:33UTC

CSSWE Telemetry Decoder   (c) Mike Rupprecht, DK3WN
=====================================================

Satellite Mode         SAFE           |  Cmds Since Boot      18403
Time Since Boot        117.0633 days  |  EPS                  OK
Batt Voltage           8.08     V     |  Batt Temp            14     dec C
Batt Discharge Current 0.00     mA    |  Batt Charge Current  141.18 mA
5V Bus Voltage         5.00     V     |  5V Bus Current       31.37  mA
3.3V Bus Voltage       3.31     V     |  3.3V Bus Current     54.90  mA
Solar Panel Volt/Curr  OK             |  PVX1 Voltage         0.68   V
PVX1 Current           0.00     mA    |  PVX2 Voltage         10.86  V
PVX2 Current           0.00     mA    |  PVY1 Voltage         0.51   V
PVY1 Current           0.00     mA    |  PVY2 Voltage         10.95  V
PVY2 Current           101.96   mA    |  Solar Panel Temp     OK
PVX1 Temp              35       deg C |  PVX2 Temp            -21    deg C
PVY1 Temp              29       deg C |  PVY2 Temp            46     deg C
Radio                  OK             |  Radio Temp           16     deg C
CDH Temp               14       deg C |  GPIO: Battery Heater OFF    V
GPIO: ADM Resistor     OFF      V     |  GPIO: REPTile 3.3V   ON     A

CSSWE Telemetry 08-10-2013

Posted on by

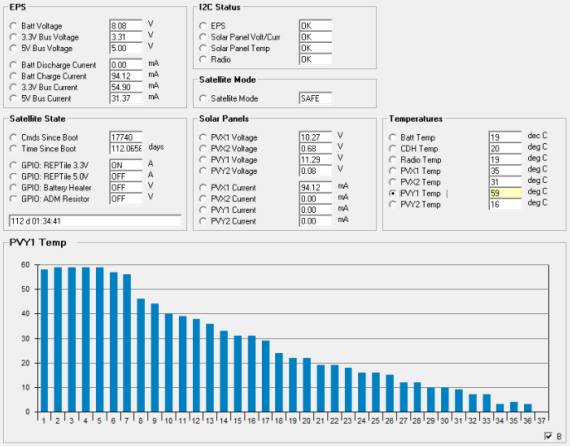

CSSWE Telemetry 08-10-2013 18:45 UTC

CSSWE TLM 08-10-2013 184:5UTC

CSSWE Telemetry 08-10-2013 17:09 UTC

CSSWE Telemetry Decoder   (c) Mike Rupprecht, DK3WN
=====================================================

Satellite Mode         SAFE            |  Cmds Since Boot        17740
Time Since Boot        111.9991  days  |  EPS                    OK
Batt Voltage           7.88      V     |  Batt Temp              18      dec C
Batt Discharge Current 62.75     mA    |  Batt Charge Current    0.00    mA
5V Bus Voltage         5.00      V     |  5V Bus Current         31.37   mA
3.3V Bus Voltage       3.31      V     |  3.3V Bus Current       54.90   mA
Solar Panel Volt/Curr  OK              |  PVX1 Voltage           0.00    V
PVX1 Current           0.00      mA    |  PVX2 Voltage           10.61   V
PVX2 Current           0.00      mA    |  PVY1 Voltage           0.34    V
PVY1 Current           0.00      mA    |  PVY2 Voltage           8.40    V
PVY2 Current           0.00      mA    |  Solar Panel Temp       OK
PVX1 Temp              -11       deg C |  PVX2 Temp              29      deg C
PVY1 Temp              13        deg C |  PVY2 Temp              57      deg C
Radio                  OK              |  Radio Temp             19      deg C
CDH Temp               19        deg C |  GPIO: Battery Heater   OFF     V
GPIO: ADM Resistor     OFF       V     |  GPIO: REPTile 3.3V     ON      A

CubeSats Launch from Vandenberg

Posted on by

Atlas V NROL-36On August 2, 2012 at 07:40 UT an Atlas V rocket is planned to launch a combination of 11 satellites from Vandenberg Air Force Base in California for the US Government and NASA ELaNa university CubeSats.

The primary mission will launch a pair of US Navy Ocean Surveillance Satellites (NOSS). These satellites carry equipment to track ships and aircraft by triangulation of radio transmissions. The two NOSS satellites have a combined weight of 6500 kg. They will separate a few days after being placed into a 1100 km circular orbit at 63° inclination.

Atlas V Payload illustrationThis is the first Atlas V launch with modified helium tanks in the Centaur upper stage. The change has created room in the aft skirt to accommodate 8 P-POD dispensers for CubeSats. This launch carries 11 CubeSats, to be released into 470 x 770 km, 63° orbit about 3 hours after launch and following maneuvers by the Centaur upper stage.

NASA ELaNa Launch and Deployment

3 P-Pods will carry 4 CubeSats as the NASA sponsored “ELaNa VI” cluster:

1. CINEMA (CubeSat for Ion, Neutral, Electron, Magnetic fields)
http://www.eecs.berkeley.edu/Pubs/TechRpts/2010/EECS-2010-83.pdf

Cinema Berkeley Space Physics Research Group imageFirst in a trio of identical nano-satellites studying Space Weather effects in near-Earth space, 3U CubeSat from University of California at Berkeley,

Uplink uses a serial connection with a data rate of 9600 bps.

Downlinks for engineering telemetry and command are in the 2400-2450 MHz range; Science telemetry is in 2200-2300 MHz range.

1 Mbps data rate, Reed-Solomon encoded bit stream.

2. CSSWE (Colorado Student Space Weather Experiment)
http://lasp.colorado.edu/home/about/quick-facts-csswe/

3U CubeSat designed and developed by students at the University of Colorado at Boulder (CU-Boulder). The objective of the science mission is to address fundamental questions pertaining to the relationship between solar flares and energetic particles.

Downlink 437.345 MHz, 9k6 with AX25

CP5 CubeSat CalPoly3. CP5 (PolySat)
http://polysat.calpoly.edu/CP5.php

California Polytechnic State University at San Luis Obispo mission with De-Orbiting Experiment Using A Deployed Thin-Film Mechanism.

Downlink 437.405 MHz at 1 watt, AFSK on LSB AX.25 over NRZI at 1200 bps, every 2 minutes, begins 3.5 hours after first turn-on

4. CXBN (Cosmic X-Ray Background Nanosatellite)
http://universe.sonoma.edu/CXBNanosat/

Morehead State University mission to map the entire sky in the X-ray spectrum using high energy cosmic background radiation measurements in the 30-50 keV range. 2U CubeSat.

Downlink 437.525 MHz, GFSK, AX.25

US Government Payloads
5 P-PODs will carry 7 US Government payloads (list subject to confirmation):

Aeneas University of Southern California1. Aeneas
Aeneas Project

Department of Homeland Security satellite technology demonstration program to track cargo containers worldwide, 3U CubeSat built by the University of Southern California. Proof of concept mission to prove the concept of WiFi based tag tracking from Low Earth Orbit.

First CubeSat to deploy 2.4 GHz Dish Antenna. WiFi transmitter will transmit on 2425.0 MHz with 1 watt of output power.

Downlink 437.600 MHz AX25 1200 bps beacon every 10 second and a spread spectrum two-way link elsewhere in the 70cm band.

2. ORSES (ORS Enabler Satellite)
Operationally Responsive Space office, 3U CubeSat for the US Army Space and Missile Defense Command.

3. Horus
One of a satellite pair (with Re) has optical sensors to detect orbiting payloads and debris for orbit measurement, 3U CubeSat from Lawrence Livermore National Laboratory.

4. Re
Second satellite of a pair (with Horus) has optical sensors to detect orbiting payloads and debris for orbit measurement, 3U CubeSat from Lawrence Livermore National Laboratory,

5. 6. 7. Aerocube 4A, 4B, 4C
Built and operated by the Aerospace Corporation for technical research.

Source AMSAT News Service ANS and UK Amsat
