CubeSAT launch 29-01-2015

Posted on by

Exocube CP-10CubeSat launch scheduled for Jan 29, 2015 14:20 UTC from Vandenberg Air Force Base Space Launch Complex with a Delta-2 rocket.

Primary payload: Soil Moisture Active Passive (SMAP) secondary payload: ELaNa-X (3 POD)

Firebird-II FU3         437.405 MHz 19k2 FSK
Firebird-II FU4	        437.230 MHz 19k2 FSK
GRIFEX                  437.485 MHz 9k6 FSK
Exocube (CP-10)         437.270 MHz 9k6 FSK

Preliminary TLE

EXOCUBE
1 99993U 00000    15029.59770833 -.00001134  00000-0 -64350-4 0 00004
2 99993 099.0736 036.6690 0163275 344.1705 144.7582 15.02264856000014
FIREBIRD-2
1 99991U 00000    15029.59770833 -.00001191  00000-0 -74412-4 0 00005
2 99991 099.0666 036.7936 0148155 343.1200 146.2345 15.00731451000019
GRIFEX
1 99992U 00000    15029.59770833 -.00000939  00000-0 -53803-4 0 00006
2 99992 099.0410 036.6726 0153788 343.4726 145.2471 15.03079548000011

Source: SatBLOG DK3WN

ESA – Fly Your Satellite

Posted on by

P-POD IntegrationESA invites European student teams who are building CubeSats with mainly educational objectives to propose their satellite for the new ‘Fly Your Satellite!’ programme.

‘Fly Your Satellite!’ is an exciting new initiative from the ESA Education and Knowledge Management Office. It is focused on CubeSat projects run by university students and builds on the successful ‘CubeSats for the Vega Maiden Flight’ pilot programme, which culminated in 2012 with the launch of seven university student-built CubeSats on board the Vega Maiden Flight.

In the future, this new initiative is intended to cover the complete development process of a satellite from concept to launch. However, the 2013 edition will be dedicated to teams whose satellite is already at an advanced stage of development and able to complete the Flight Model assembly by June 2013. One, two or three-unit CubeSats are eligible.

The ‘Fly Your Satellite!’ programme envisages three consecutive activity phases, with intermediate reviews that the student teams will have to pass to be accepted into the next phase.

Phase 1: Build Your Satellite

During Phase 1 the CubeSat teams shall complete the integration and functional testing of their CubeSat’s Flight Model in ambient conditions. They shall submit related documentation and data packages to be compiled following ESA guidelines.

At the end of Phase 1, the CubeSats development status and their data package documentation will be reviewed by ESA specialists who will select the teams for Phase 2 (the environmental test campaign).

Phase 2: Test Your Satellite!

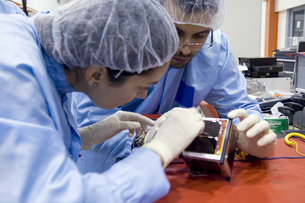

CubeSat Clean before integrationA CubeSat team cleaning their CubeSat before integration.

During Phase 2 the selected teams will be supported by ESA during the task of performing environmental tests on their satellites. These will include vibration and thermal-vacuum tests. For this activity, ESA will offer the use of a Thermal Vacuum chamber and a mechanical shaker.

The definition of the launcher and the mission’s environmental requirements are not yet expected to be known by the time of Phase 2. Therefore the environmental tests will be performed against an envelope of generic requirements that will be agreed between the ESA specialists and the CubeSat teams.

During this phase, in which the satellite performances will have to be assessed before and after the test campaign, the teams shall prepare and then submit the so-called Acceptance Data Packages. These shall be compiled following ESA guidelines and shall include the documentation of the test campaign.

At the end of Phase 2, the satellites’ documentation will be reviewed by ESA and the best CubeSat teams will be selected for a launch opportunity – their Ticket to Orbit!.

Phase 3: Ticket to Orbit!

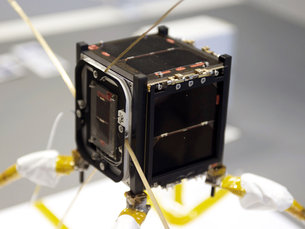

Xatcobeo final assemblyThe ESA Education Office will facilitate the procurement of a launch opportunity that is still to be defined. Therefore, start-time and duration of Phase 3 will depend on the actual launch date.

The CubeSats selected for a Ticket to Orbit! will be launched if and only if the respective teams provide proof of the CubeSat frequency registration with the International Amateur Radio Union (IARU) and the International Telecommunication Union (ITU), and proof of the satellite’s registration on the United Nations (UNOOSA) Register of Objects Launched into Outer Space.

The selected CubeSats will be installed inside CubeSat orbital deployers, and, after a campaign of integrated tests (to be performed against the environmental requirements of the real mission), the flight hardware will be shipped to the launch site for the launch campaign.

Further details can be found at the ESA website via the this URL

[PE0SAT Thanks ESA and PA0DLO for the above information]

ISS Amateur Radio CubeSats to Deploy

Posted on by

New ISS Cubesat deployment date, October 4th, 2012

First 14:30-14:40 UTC: Order of WE-WISH, RAIKO by Astronaut Akihiko Hoshide.
Second 15:35-15:45 UTC: Order of TechEdSat, NanoRack/F-1, FITSAT-1 by JAXA GS.

ISS Cubesats deployment September 27, 2012

J-SSODJAXA have announced the deployment of five CubeSats from the International Space Station (ISS) planned for  Thursday, September 27 at around 15:10 UTC and will be broadcast live on the web.

The CubeSats are mounted in a JEM-Small Satellite Orbital Deployer (J-SSOD). In one pod are FITSAT-1, TechEdSat and F-1 (NanoRacks) and in the second pod is WE-WISH and a scientific 2U CubeSat RAIKO.

FITSat 1 (Fukuoka Institute of Technology)
http://www.fit.ac.jp/~tanaka/fitsat.shtml
High-speed data test, high power LED visual tracking
CW Beacon 437.250 MHz,
FM Data   437.445 MHz,
High speed data 5840.00 MHz.

TechEdSat (NASA Ames)
http://ncasst.org/techedsat.htmlTelemetry downlink on 437.465 MHz.
It is also carrying SatPhone ground station hardware and had planned to transmit from space using frequencies allocated to ground stations to communicate via the Iridium and Orbcomm satellite phone networks. This would have been a first for a CubeSat, however, a statement from the team says: “We were forced to disable the Iridium modem as our FCC license did not come in time. As usual, building the satellite is the easy part.”

F-1 (FPT University) – Information for Radio Amateurs http://fspace.edu.vn/?page_id=27
http://fspace.edu.vn/?page_id=10
On-board camera for earth observation mission
Yaesu VX-3R 1, 437.485 MHz FM downlink:
o Solar cell power only, operates in sunlight only
o Output power: between 0.1W and 0.3W depending on illumination, half-wave dipole antenna
o Morse code beacon (10 chars) using FM CW every 30 seconds, listen here

Yaesu VX-3R 2, 145.980 MHz FM downlink:
o Rechargeable battery, operates in dark and sunlight
o Output power: max 1.0W, half-wave dipole antenna
o AFSK 1200bps, half duplex, one AX.25 packet every 60 seconds

WE-WISH (Meisei Electric Co., Ltd.)
http://www.meisei.co.jp/news/2011/0617_622.html
Infrared camera for environmental studies
Downlink on 437.505 MHz

ISS Kibo Launch

[PE0SAT Thanks amsat-bb and JE9PEL for this information]

ISS KIBO CubeSats

Posted on by

RAIKO, FITSAT-1, WE-WISH, TechEdSat, F-1

They will be loaded into the J-SSOD deployer on ISS KIBO with TechEdSat and F-1 by HTV-3 (Kounotori-3) on 21 July 2012.

These satellites will be deployed from KIBO by the robotic arm in September 2012.

RAIKO (Wakayama University)
100 x 100 x 200 mm 2U
http://www.astro.mech.tohoku.ac.jp/RAIKO/

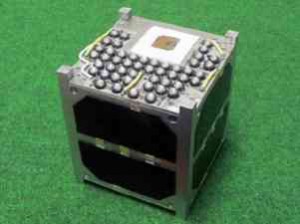

FITSAT-1 LedsFITSAT-1 (Fukuoka Institute of Technology)
437.250MHz CW, 437.445MHz FM, 5840.00MHz High speed data
http://www.fit.ac.jp/~tanaka/fitsat.shtml

WE WISH (Meisei Electric Co., Ltd.)
437.505MHz SSTV, Telemetry, CW
https://sites.google.com/site/jq1ziijq1zij/

TechEdSat will be deployed from the International Space Station (ISS). It is a 1U CubeSat that will demonstrate Plug and Play power architecture and two way communication via the satellite phone/data networks Iridium and Orbcomm.

There will be a 437.465 MHz beacon transmitting 1 watt to 1/4 wave monopole. Commanding is via the commercial networks and there is a 2 week watchdog timer to stop the beacon in the event of no commands being received.

TechEdSat will be launched along with Raiko, FITSat-1, We-Wish and F-1 to the ISS aboard HTV-3, currently planned to launch July 21, 2012. From there, it will be deployed into Low Earth Orbit using the JAXA J-SSOD deployer, from the Japanese Experiment Module (JEM also known as Kibo). They will be deployed with the Kibo robotic arm planned for September, 2012.

FSpace-F1 ModelWiki-TechEdSat http://en.wikipedia.org/wiki/TechEdSat

F-1, Vietnam Student CubeSat

Downlink: 145.980MHz, 437.485MHz
Mode:     AFSK 1200bps, GMSK 9600bps, AX.25 KISS
Size:     10x10x10cm (1U cubesat)
Mass:     1kg
Payload:  C328 camera with 640x480 resolution

Main website: FSpace Laboratory

[PE0SAT Thanks JE9PEL, Mineo Wakita via amsat-bb for this information]

CubeSat to use propulsion

Posted on by

SatMagazine March 2012The March issue of SatMagazine features a 4 page article by Randa Relich Milliron, CEO and Co-Founder of Interorbital Systems.

Interorbital Systems plans to launch a number of amateur radio CubeSats along with dozens of TubeSats on it’s Neptune 9 rocket.

Among the CubeSats to be launch by Interorbital Systems is Euroluna’s Romit1 which aims to be the first CubeSat to use propulsion to significantly raise its orbit, from 310 to 700 km.

The Interorbital Systems article appears on page 90 and is followed on page 94 by an article on the Space Foundation which aims to promote science, technology, engineering and mathematics (STEM) in schools.

Download your free copy of the March SatMagazine http://www.satmagazine.com/2012/SM_Mar2012.pdf

[PE0SAT Thanks Amsat-UK and M5AKA for the above information]

Preliminary TLE VEGA launch

Posted on by

Preliminary TLE (Orbital Elements) for the upcoming VEGA launch

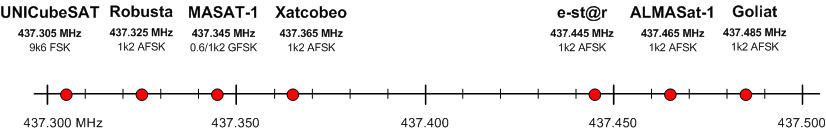

Cubesats Frequentie Spectrum Vega Launch

TLE-new 19-02-2012 12:00 UTC

ALMASAT-1
1 38078U 12006B   12049.33443324  .00018909  00000-0  55604-3 0   123
2 38078  69.4856 227.8040 0775179  38.1714 327.1743 14.04552460   692
2012-006C
1 38079U 12006C   12049.75727519  .00032984  00000-0  85788-3 0   159
2 38079  69.4840 226.8298 0780720  37.6598 327.6743 14.05826935   745
2012-006D
1 38080U 12006D   12049.68686761  .00031213  00000-0  83232-3 0   196
2 38080  69.4860 226.9842 0779364  37.6440 327.6296 14.05613316   732
2012-006E
1 38081U 12006E   12049.82923639  .00025595  00000-0  68592-3 0   177
2 38081  69.4839 226.6652 0779116  37.5252 327.7259 14.05593472   752
2012-006F
1 38082U 12006F   12049.75837023  .00023781  00000-0  63742-3 0   167
2 38082  69.4805 226.8323 0779435  37.5115 327.7743 14.05534126   743
2012-006G
1 38083U 12006G   12049.68698015  .00036831  00000-0  99391-3 0   165
2 38083  69.4810 226.9839 0778140  37.8349 327.4348 14.05605984   735
2012-006H
1 38084U 12006H   12049.68735371  .00027952  00000-0  76090-3 0   135
2 38084  69.4877 226.9866 0778137  37.7314 327.5265 14.05465744   733
2012-006J
1 38085U 12006J   12049.68741246  .00029832  00000-0  81206-3 0   105
2 38085  69.4808 226.9854 0778135  37.7482 327.5230 14.05456796   738

Preliminary TLE

XATCOBEO
1 00002U 12006B   12044.46627998  .00000000  00000-0  31967-3 0    16
2 00002  69.4857 238.7662 0796847  45.0971 191.9357 14.06476807    13
ESTAR
1 00003U 12006C   12044.46627998  .00000000  00000-0  28115-3 0    18
2 00003  69.4857 238.7662 0796159  45.0883 191.9444 14.06339990    10
GOLIAT
1 00004U 12006D   12044.46627998  .00000000  00000-0  26912-3 0    12
2 00004  69.4857 238.7662 0795841  45.0842 191.9484 14.06276813    11
ROBUSTA
1 00005U 12006E   12044.46627998  .00000000  00000-0  31201-3 0    10
2 00005  69.4856 238.7662 0796758  45.0912 191.9422 14.06456720    16
MASAT
1 00006U 12006F   12044.46627998  .00000000  00000-0  28115-3 0    11
2 00006  69.4856 238.7662 0796254  45.0851 191.9481 14.06356736    11
PW-SAT
1 00007U 12006G   12044.46627998  .00000000  00000-0  26588-3 0    14
2 00007  69.4856 238.7662 0796068  45.0829 191.9503 14.06319864    16
UNICUBESAT
1 00008U 12006H   12044.46627998  .00000000  00000-0  31967-3 0    12
2 00008  69.4856 238.7662 0796936  45.0885 191.9454 14.06489697    10
ALMASat-1
1 00009U 12006I   12044.46627998  .00000000  00000-0  12728-3 0    17
2 00009  69.4857 238.7662 0792733  45.0462 191.9858 14.05660435    12
