MASAT-1 Telemetry 13-10-2013

Posted on by

MASAT-1 Telemetry 13-10-2013 19:30 UTC

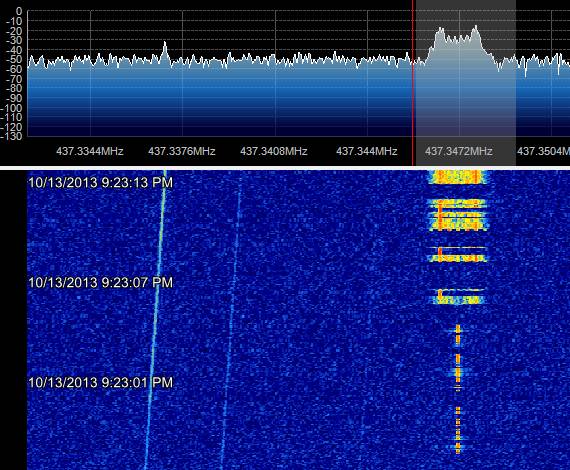

Below a SDR spectrum with the MASAT-1 data. It first sends CW and afterwards a GFSK signal.

MASAT-1 SDR 13-10-2013 19:30UTC

And here a telemetry audio fragment.

With the MASAT-1 Ground station decoder you received raw data in the following format:

PACKET 00 9E 09 02 50 20 13 10 13 19 21 06 13 4B 2A 03 01 00 00 00 00 00 00 00 00\
       00 00 00 00 00 00 00 f3718c4d5c87eb8931a747d1cf6421df1e3e57fb 1381691892852

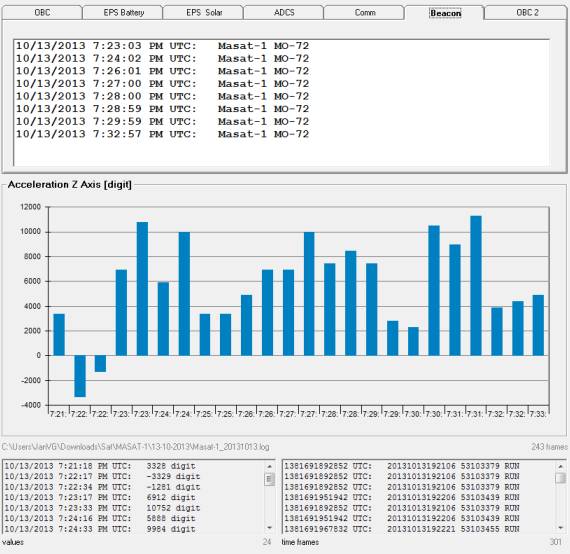

When applying that data to the MASAT-1 decoder made by Mike DK3WN you get the following output.

MASAT-1 13-10-2013 19:30UTC

Telemetry decoding April 20 2013

Posted on by

An evening Telemetry decoding
April 20, 2013 18:30 UTC

OSSI-1

With the help of the below TLE data I am listening to OSSI-1 this evening. But after three passes I haven’t heard anything from this new Cubesat. I have listened on both 145.980 and 437.525 (Kenwood TS-711 on VHF and FUNcube Dongle Pro+ on UHF)

OSSI-1
1 39137U 13015H   13109.61683023  .00218796  18651-4  10338-2 0    37
2 39137 064.9052 032.9523 0221255 060.5813 013.8697 15.55037421    35

O/OREOS 18:30 UTC

RAW data:

18:26:28 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    B514BE038D00F70100000032022C0054050D5F094300204B46
18:26:33 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    BA14BE0001000F021A9A015203010286010D5F094300204B46
18:26:38 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    BF14BE01020003025CAA0100000000CF090D5F094300204B46
18:26:43 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    C414BE02A1000302680000A30166059A000D5F094300204B46
18:26:48 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    C914BE030000FD0100000032022C0054050D5F094300204B46
18:26:53 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    CE14BE0000000C021A9B015803010286010D5F094300204B46
18:26:58 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    D314BE01B50004025CAB0100000000CF090D5F094300204B46
18:27:03 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    D814BE0200000902680000A30166059A000D5F094300204B46
18:27:08 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    DD14BE030000FD0100000032022C0054050D5F094300204B46
18:27:13 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    E214BE006C000B021A9C015103010286010D5F094300204B46
18:27:18 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    E714BE01000006025CAC0100000000CF090D5F094300204B46
18:27:33 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    F514BE001F0013021A9C014D03010286010D5F094300204B46
18:27:38 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    FB14BE01000009025CAE0100000000CF090D5F094300204B46
18:27:43 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    0015BE0200000602680000A30166059A000D5F094300204B46
18:27:48 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    0415BE038800FF0100000032022C0054050D5F094300204B46
18:27:53 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    0A15BE00020018021A9D014903010286010D5F094300204B46
18:27:58 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    0F15BE01020009025CAF0100000000CF090D5F094300204B46
18:28:03 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    1415BE029F000502680000A30166059A000D5F094300204B46
18:28:18 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    2315BE01B00009025CB00100000000CF090D5F094300204B46
18:28:23 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    2715BE0200000B02680000A30166059A000D5F094300204B46
18:28:33 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    3215BE002E0014021A9E015303010286010D5F094300204B46
18:29:08 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    5515BE038200030200000032022C0054050D5F094300204B46
18:29:13 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    5A15BE0000001F021A9F014203010286010D5F094300204B46
18:29:23 KF6JBP/TELEM>UNDEF>UI,C,F0 (1201 baud):
OOREOS.org    6415BE0296000602680000A30166059A000D5F094300204B46

OOREOS Telemetry 20-04-2013 18:30 UTC

MASAT-1 18:58 UTC

RAW data:

PACKET 01 AF 03 19 38 CA 3F 02 1C 64 A0 00 7E DD 01 00 43 12 00 47 46 E7 E8 80 A8
7F 00 00 00 00 A6 A6 cde475dc0704e45aabd1bbf87514d11bde4ea69a 1366484293209
PACKET 02 B1 03 19 73 EF AB 03 40 00 E8 82 12 00 02 44 80 78 B6 2D 5D FF FF B3 01
E5 5E 00 00 00 00 00 47d5051b7594a36afe263507edb051eef0427c35 1366484296215
PACKET 02 B2 03 1A 32 46 AA 03 40 00 00 E8 C0 BF C0 18 2E 16 04 1D 1B 45 80 7D E3
42 93 FF FF 15 45 A6 8233f5c12a73b93124fa445f7f658f484f06a5ee 1366484297336
PACKET 02 B3 03 1B AB D2 AC 03 41 00 00 00 DE 59 AE DA DD C4 1A 03 04 3E 04 03 47
48 47 46 43 46 46 80 3f4651e53b75ee37c3218ccea554edf233503579 1366484298343

MASAT-1 TLM 20-04-2013 18:59 UTC

Telemetry decoding

Posted on by

This evening we did some telemetry decoding.

April 1, 2013 17:50 UTC

First CubeSat we gave a try was STRaND-1, but it wasn’t sending any data this evening (April 1, 2013 17:50 UTC). When I looked at the Satblog from DK3WN it seems that STRaND-1 wasn’t heard the whole day. Lets hope noting is wrong with the CubeSat.

April 1, 2013 18:05 UTC

RAX-2 is sending telemetry loud and clear, and the combination FUNcube Dongle Pro+, Orbitron and SDR# are doing a great job in controlling Doppler thanks to a great Doppler control plugin that can be part of SDR#.

RAX-2 SDRSharp

RAX-2 is sending every 20s a 9k6 data burst that can be decoded with the decode software from Mike DK3WN. During this pass I received over 60 packets and in the below image you can see the results.

RAX-2 TLM 01-04-2013 18:05 UTC

Here is an example of a KISS frame that is received from RAX-2, nice to see the error that RAX-2 is using RAX-1 as Call.

[254 Bytes KISS Frame (without CRC)]
ctrl: 3   PID: F0 {UI}   235 Payload Bytes
from RAX-1 to CQ:
   1 > AB CD 00 00 06 00 03 EB 00 6E 76 33 CB 59 51 58 CB 59 51 00
  21 > 00 00 00 90 00 FF FF 31 05 99 00 95 09 16 00 03 00 4C 00 9E
  41 > 00 15 00 29 00 00 00 19 00 00 00 80 00 77 02 6E 07 02 00 FF
  61 > FF 08 00 00 00 CD 00 6E 07 41 07 00 00 00 00 35 00 93 00 11
  81 > 00 3C 01 33 93 E7 C2 05 00 00 00 00 00 D5 39 00 00 00 00 BD
 101 > FF 47 00 84 FE 10 00 13 00 A9 00 58 00 00 00 00 00 25 00 E1
 121 > FF 15 00 AE FE 04 01 75 04 B4 08 F0 0A AF 02 90 05 0C 00 00
 141 > 00 08 00 5B 06 02 00 00 00 07 00 EF 05 01 0E 7E 07 83 08 2E
 161 > 06 91 02 AF 01 D1 02 36 06 00 00 C6 09 25 00 84 06 83 38 FF
 181 > FF FF C7 0F D2 12 5A 59 59 5C 5C 5C 5B 9B CE 42 00 00 9F 51
 201 > FF 44 66 FF 9E 5B CE C8 C8 3F A0 00 00 00 41 9F 00 00 00 FF
 221 > FF FF D2 07 18 FF FF FF FF 4F 08 5E F1 68 DD

April 1, 2013 19:02 UTC

MASAT-1 sends a two tone signal

MASAT-1 Audio Spectrum

This signal can be decoded with the telemetry software that is available on MASAT-1 website. After that you can use the log file with a decoder program from DK3WN and this produces the following output.

MASAT-1 TLM 01-04-2013 19:02 UTC

Here is an example of the data that is send by MASAT-1

PACKET 03 EC 03 19 6C 20 CE 00 AE 55 00 00 42 55 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 c71bc513453b2f0810625751f5236f4df7a11078 1364842925809

When you want to experiment with receiving telemetry, take a look at my soundcard page and give it a try.

MASAT-1 designated MagyarSat-OSCAR-72 (MO-72)

Posted on by

Masat-1 ModelMASAT-1 designated MagyarSat-OSCAR-72 (MO-72)

OSCAR Number Administrator Bill Tynan, W3XO reports, “Congratulations on the successful launch of the MaSat-1 Cubesat that the team at Budapest University of Technology and Economics have been responsible for designing, building and testing.

“Since you have met all of the requirements for being issued an OSCAR number, including coordination through IARU and requesting an OSCAR number, I, under authority vested in me by the President of AMSAT-NA, do hereby name MaSat-1 as MagyarSat-OSCAR-72 or MO-72.” Bill concludes, “I, and all at AMSAT-NA wish MagyarSat-OSCAR-72 great success in fulfilling all of its mission objectives.”

[PE0SAT thanks Bill Tynan, W3XO for the above information]
