GRIFEX active and decoded

Posted on by

With the help of the recorded IQ file that can be downloaded at the following location, I was able to decode and send a couple of kiss packets to the GRIFEX telemetry server. Below you can see the data decoded by the MXL Ground Station Client.

GRIFEX-GS-client

2015-01-31 17:49:22.300 UTC: [267 Bytes KISS Frame (without CRC)]
   1 > C0 00 96 88 70 A6 A0 A6 60 86 A2 40 40 40 40 E1 03 F0 AB CD
  21 > 00 00 00 42 03 F5 00 B4 75 16 10 00 00 00 00 1A 00 10 00 06
  41 > 00 01 00 23 00 37 11 EE 7B C9 71 01 CA CB 00 00 7E 2A 00 00
  61 > 12 00 1B 00 71 00 00 00 00 28 08 00 00 29 06 21 06 F9 0C 5D
  81 > 00 27 00 F1 0C B8 0E 0C 00 A5 0E E3 05 47 06 B2 0E 0E 00 63
 101 > 0D 1C 00 17 00 F9 0C 8B 00 54 00 14 06 63 0D 80 00 F6 0C AF
 121 > 00 DB DD 00 0E 00 2F 02 0D 00 00 06 01 06 66 0A C4 00 03 0F
 141 > 41 00 FB 05 FF 05 A8 00 02 00 2A 02 07 00 0D 06 0D 06 97 0A
 161 > F3 00 2D 0F 53 00 05 06 09 06 01 FC 4E 06 4B 06 4F 06 00 DB
 181 > DC 1E 00 5A 00 53 FF 65 00 C2 FF 12 00 99 00 AE FF 45 00 E8
 201 > 00 F6 FF DB DD 00 4A 0B 40 0B 39 0A 27 0A 36 0A 41 0A BE 0A
 221 > C4 0A 36 06 BE 09 03 00 00 00 88 33 88 33 4C 00 00 00 00 00
 241 > 00 00 00 E3 03 00 00 01 00 FF FF FF FF FF FF FF FF FF FF FF
 261 > 24 94 B0 15 1C 40 C0

UZ7HO-kiss-serverI used the UZ7HO G3RUH 1.7 beta sound modem software and enabled the Kiss server on port 9100. After that I configure the config.props file that is part of the MXL Ground Station Client software to use the kiss server port. Below the config.props I used.

Don’t use the tcp to serial option that comes with the GS client software. There is a direct connection between the GS client and UZ7HO via in my example port 9100.

radio.1.name=Radio
radio.1.address=localhost
radio.1.port=9100
radio.1.type=KISS
radio.1.tncport=1

client.callsign=PE0SAT
client.id=PE0SAT_GS
server.address=mxlab.engin.umich.edu
server.port=12805

librap.SID=50
librap.PID=0

api.crafts=https://mxl-ops.engin.umich.edu/api/craft?count=25
api.command=https://mxl-ops.engin.umich.edu/api/commands/
api.raps=https://mxl-ops.engin.umich.edu/api/raps

Good luck decoding GRIFEX with this setup.

UKube-1 BPSK Telemetry

Posted on by

UKube-1 BPSK Telemetry 26-01-2015 20:13 UTC

For me a first to hear Ukube-1 send BPSK on 145.805 +/- doppler

2015-01-26 20:23:18.190 UTC: from UKUBE to MIDORI (UI, payload: 125 byte)
000 > 00 9A 92 88 9E A4 92 00 AA 96 AA 84 8A 40 01 03 F0 08 02 C0
020 > 47 00 76 10 03 19 F1 00 00 B3 9F 00 00 06 2A 08 00 21 05 00
040 > 17 40 3D 00 00 00 41 58 33 D8 30 C0 00 00 00 02 00 00 00 00
060 > 0A 1D 00 15 54 00 FC 01 7E 00 00 0B FB CF 00 A0 10 54 A3 00
080 > 00 00 00 00 00 00 8B 00 7B 00 84 80 8A 00 78 00 85 80 82 00
100 > 87 80 00 00 00 02 80 00 00 00 00 00 00 00 3D E0 00 00 00 00
120 > 6B 58 37 C0 03 04 01 30 00 00 00 00 00 00 00 00 00 04 00 00
140 > E0 B4

ukube1_dk3wn_2017_utc_2014-07-11

SPROUT data Telemetry

Posted on by

SPROUT data Telemetry 23-11-2014 14:50 UTC

2014-11-23 14:50:44.510 UTC: from JQ1ZJQ to SPROUT (UI, payload: 226 byte)
000 > C0 00 A6 A0 A4 9E AA A8 60 94 A2 62 B4 94 A2 61 03 F0 01 B1
020 > 5B FD 5B FD 64 3F 64 7F 6C 9F 64 7F 6C 7F 6C DF 6C DF 6C FF
040 > 6C 9F 6C 9F 64 7F 64 5F 6C 7F 6C BF 6C 9F 6C DF 7D BF 7E 3F
060 > 7D FF 75 7F 75 9F 7D DF 7E 3F 86 BF 87 3F 8F 5F 86 DF 86 9F
080 > 7D FF 7D DF 75 BF 75 FF 7E 1F 7E 5F 7E DF 7F 1F 87 7F 87 DF
100 > 8F FF CF FF DF FF E7 FF FF FF FF FF FF FF FF FF FF FF FF FF
120 > FF FF FF FF FF FF FF FF FF FF FF FF E7 9F 39 F0 39 EB 31 CA
140 > 31 C9 31 A9 31 A8 31 A8 31 88 29 A8 31 88 31 88 31 A8 31 A8
160 > 31 A8 31 A8 31 88 31 88 29 88 29 87 29 87 29 87 29 87 29 87
180 > 29 87 29 87 29 87 29 87 29 87 29 87 29 87 29 87 29 87 29 87
200 > 29 87 29 67 29 87 29 87 29 87 29 86 5B B3 53 73 53 52 53 52
220 > 53 72 53 92 53 93 53 B3 53 74 53 94 53 75 53 74 4B 54 4B 12
240 > 4B 12 4B 12 C0

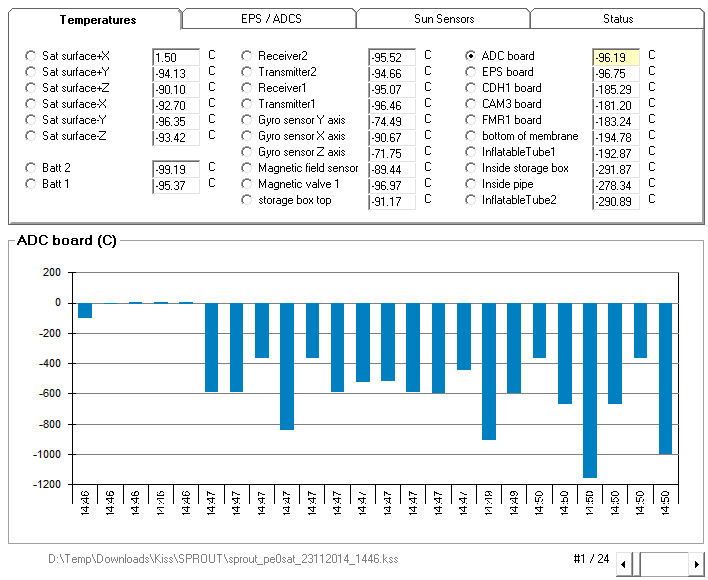

sprout_pe0sat_23112014_1446

Tsubame CW Telemetry

Posted on by

Tsubame CW Telemetry 13-11-2014 20:35 UTC

HI HI DE JQ1ZHX TSUBAME 6B ** C9 00 2C 00 00 25 38 78 87 FC 90 09 00 01
HI HI DE JQ1ZHX TSUBAME 65 2* C9 00 2C 00 00 25 38 78 87 FC 90 09 00 01
HI HI DE JQ1ZHX TSUBAME 6B 23 C9 91 00 2A 00 25 38 78 87 FC 90 09 00 01
HI HI DE JQ1ZHX TSUBAME 6A 24 C9 91 00 2A 00 25 38 78 87 FC 90 09 00 01
HI HI DE JQJZHX TSUBAM  6A 24 C9 91 00 FC 00 25 38 78 87 FC 90 09 00 01

Tsubame_Fading_13112014_2035UTC

TSUBAME Telemetry

Posted on by

TSUBAME Telemetry 10-11-2014 20:59 UTC 437.275 MHz CW

HI HI DE JQ1ZHX TSUBAME 6A 27 C9 93 00 2F 9F 26 38 ** 87 FC 90 09 00 01
HI HI DE JQ1ZHX TSUBAME 6A 27 C9 93 00 2F 77 26 ** ** 87 FC 90 09 00 01
HI HI DE JQ1ZHX TSUBAME 6A 27 C8 93 00 31 9C 26 38 78 87 FC 90 09 00 01
HI HI DE JQ1ZHX TSUBAME 6A 28 C8 93 00 31 7A 26 37 78 87 FC 90 09 00 01
HI HI DE JQ1ZHX TSUBAME 6A 27 C8 93 ** ** 7B 26 38 78 87 FC 90 09 00 01
